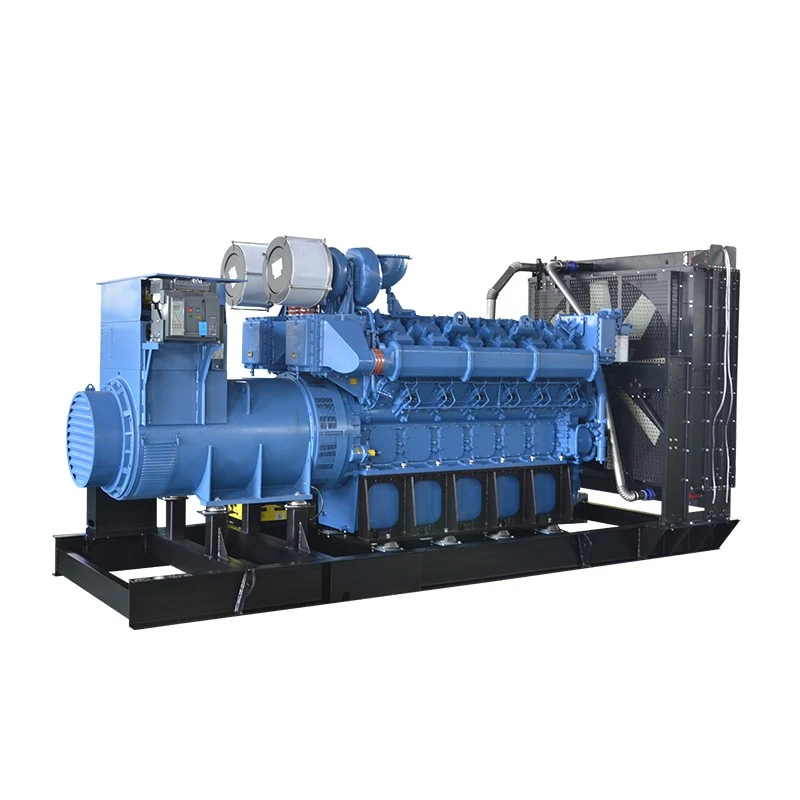

Product Overview

The DBD Power 280kW diesel generator set, powered by the heavy-duty Yuchai engine, delivers highly reliable, continuous, and standby power for demanding industrial applications. Engineered for fuel economy and exceptional load response, this 280kW/350kVA power solution is ideal for factories, construction sites, data centers, and commercial complexes looking for cost-effective yet robust power infrastructure.

Prime Power: 280kW / 350kVA
Standby Power: 308kW / 385kVA
Engine Brand: Yuchai (YC6MK series)
Alternator Option: Stamford, Marathon, or DBD Premium Brushless Alternator
Controller: SmartGen / Deep Sea (DSE) Intelligent Control Panel

Technical Specifications

Genset Specifications	Data / Parameters	Engine & Alternator Details	Data / Parameters
Genset Model	DBD-280YC	Engine Brand & Model	Yuchai (Guangxi Yuchai Log.)
Prime Power	280 kW / 350 kVA	Engine Characteristics	6-Cylinder, In-line, 4-Stroke, Turbocharged
Standby Power	308 kW / 385 kVA	Governor Type	Electronic Governing (ECU/EFC)
Rated Voltage	220V/380V, 230V/400V (Customizable)	Cooling Method	Water-Cooled with Radiator ($50^\circ\text{C}$ ambient max)
Rated Frequency / Speed	50Hz @ 1500RPM / 60Hz @ 1800RPM	Alternator Type	Brushless, IP23, H-Class Insulation
Power Factor	0.8 (Lagging)	Excitation System	Self-Excited, AVR (Automatic Voltage Regulation)
Open Type Dimension	Approx. 3000 × 1100 × 1650 mm	Silent Type Noise Level	$\le$ 72-75 dB(A) @ 7 meters

Key Advantages & Selling Points

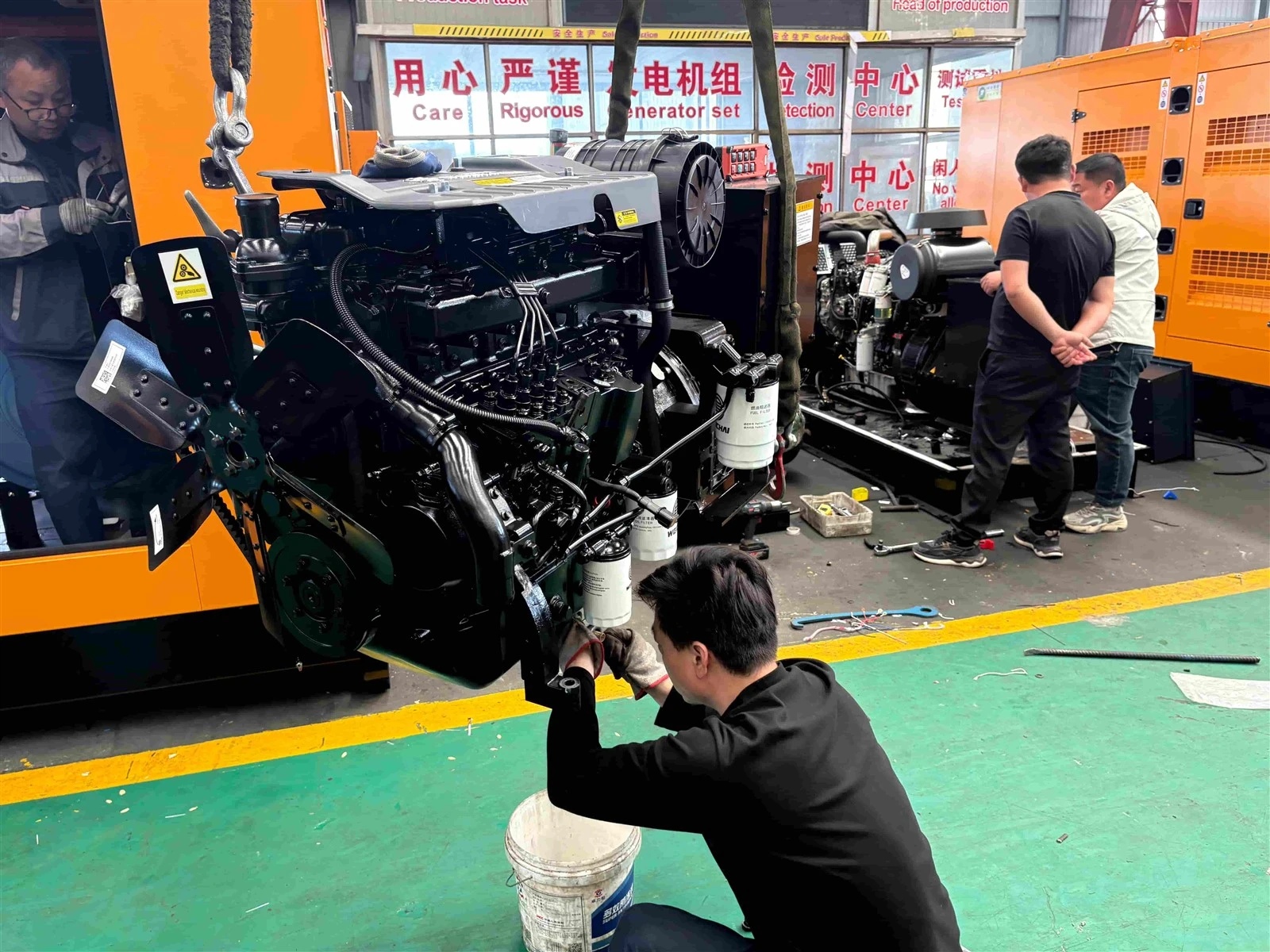

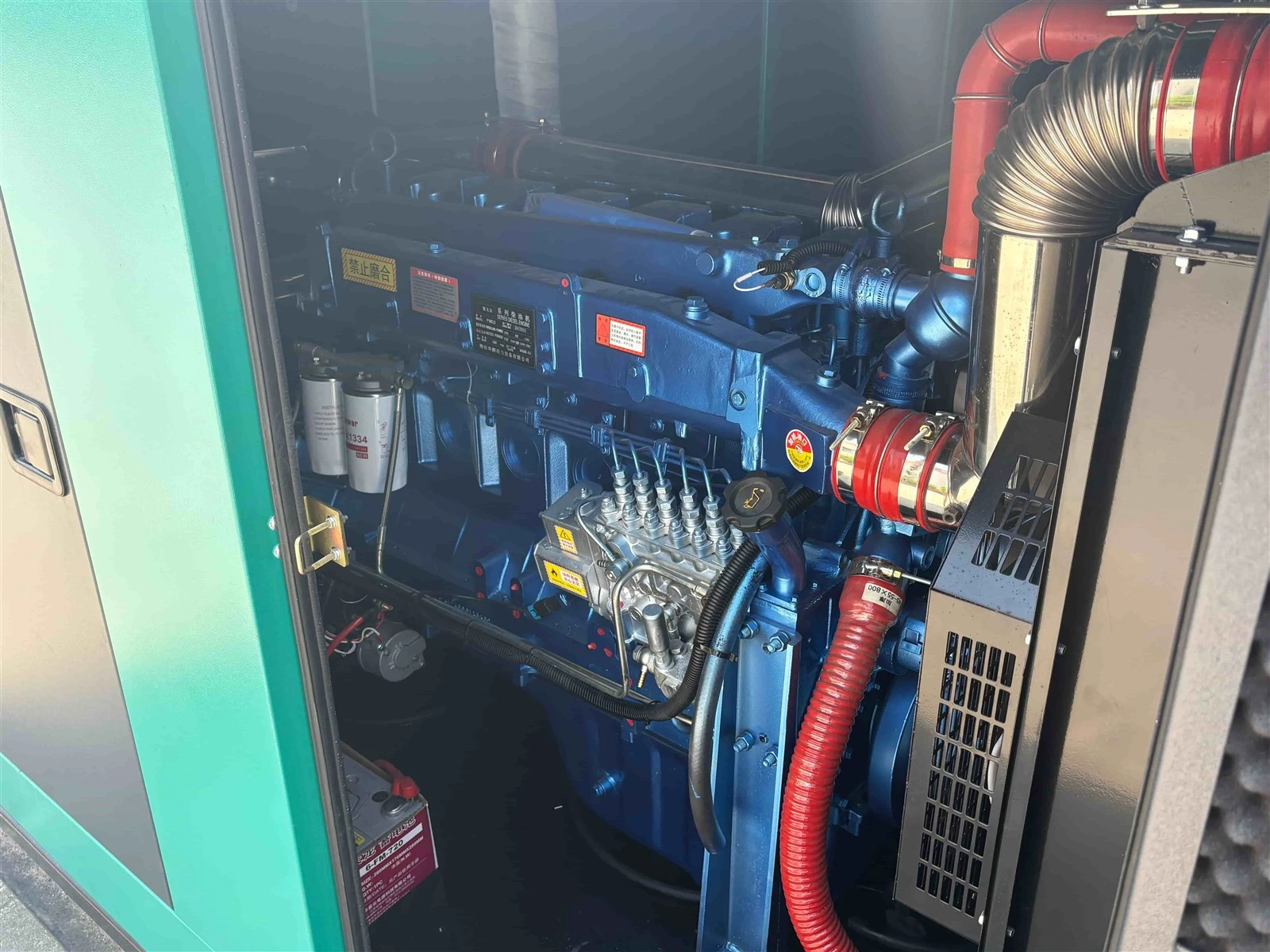

1. Heavy-Duty Yuchai Engine: Premium Power & Low TCO

Powered by China's leading powertrain manufacturer, Yuchai engines are celebrated for their massive torque, high block-load capability, and exceptional durability. Compared to industry peers, Yuchai offers an outstanding Total Cost of Ownership (TCO) with readily available global spare parts.

2. Advanced Fuel Efficiency & Eco-Friendly

Equipped with an advanced high-pressure common rail (HPCR) system and electronic governor, this 280kW genset optimizes fuel atomization. It achieves up to 5% lower fuel consumption than competing engines in the same power range, while complying with international emission standards.

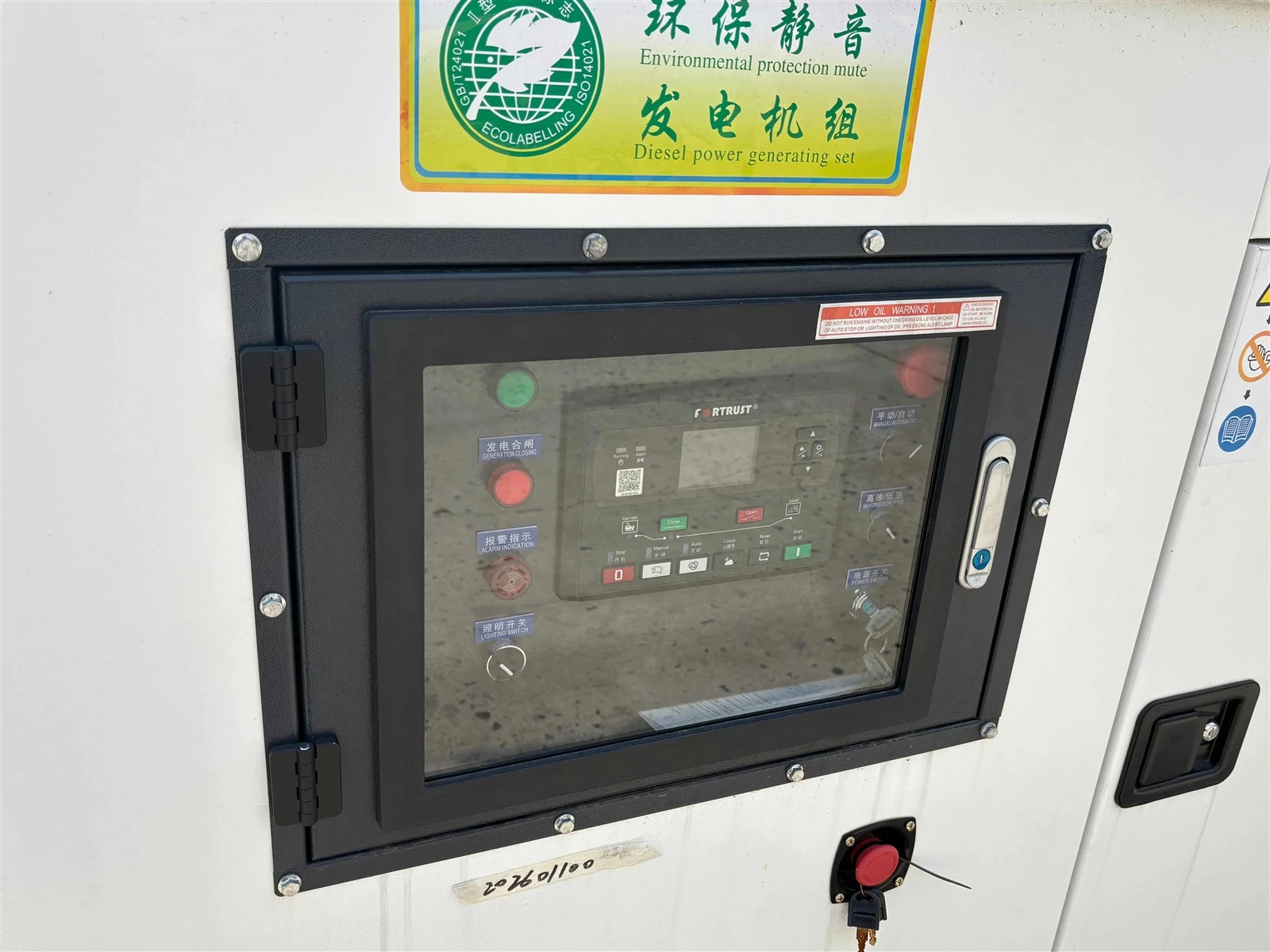

3. Intelligent Control & 24/7 Unattended Operation

Integrated with top-tier controllers (SmartGen/Deep Sea), the system supports real-time monitoring of voltage, current, oil pressure, and water temperature. Features include:

Automatic Start/Stop (ATS compatible)
Remote monitoring & cloud-based management via mobile/PC
Comprehensive fault protection (Overload, overspeed, low oil pressure)

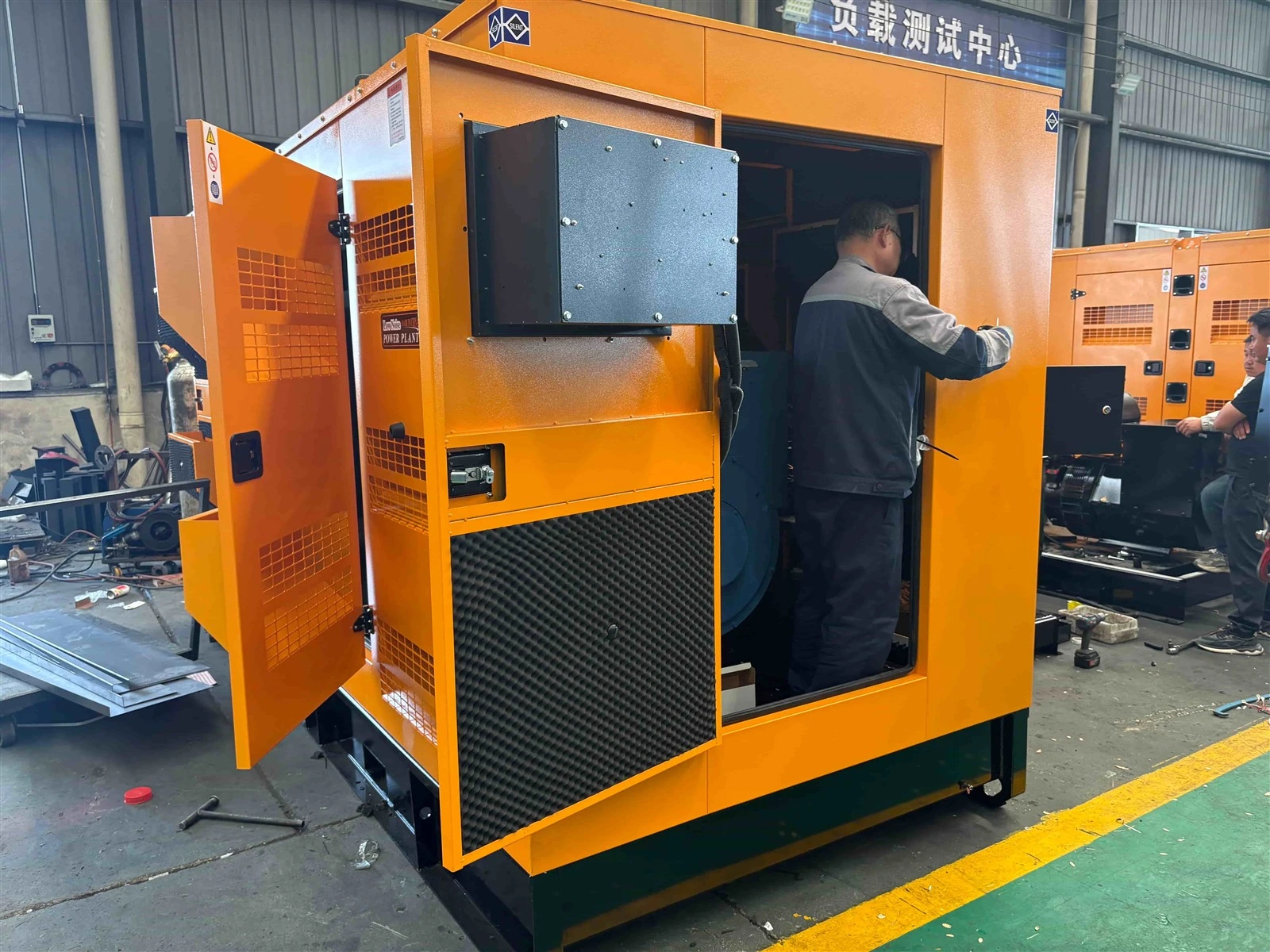

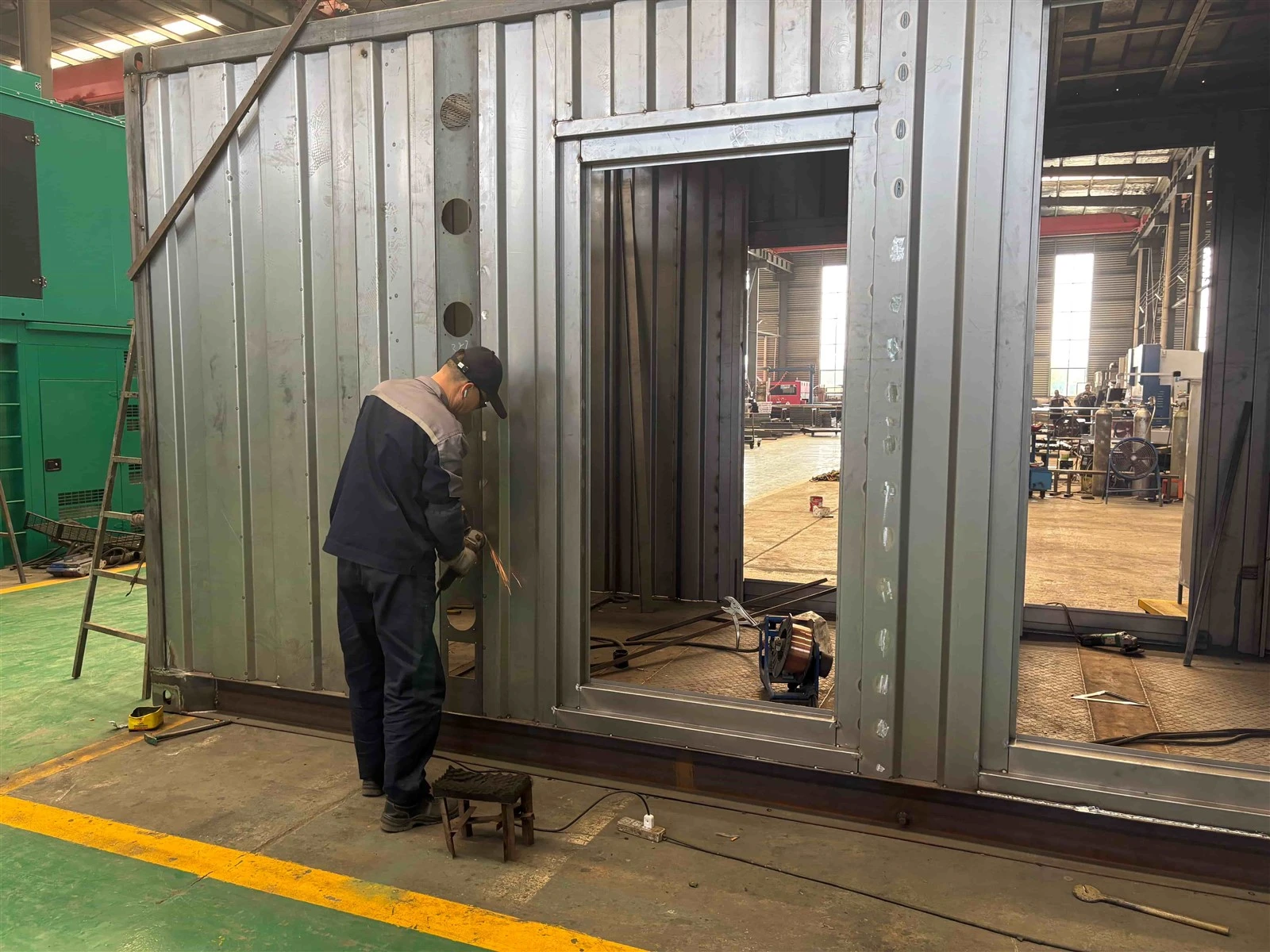

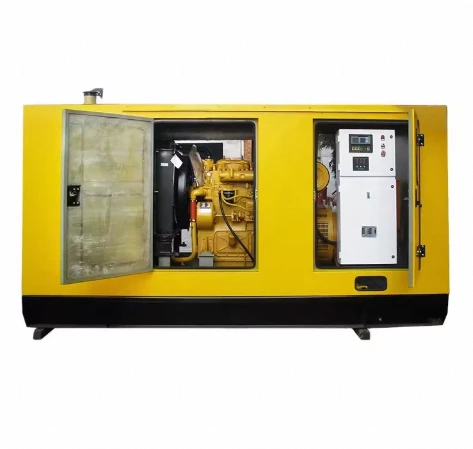

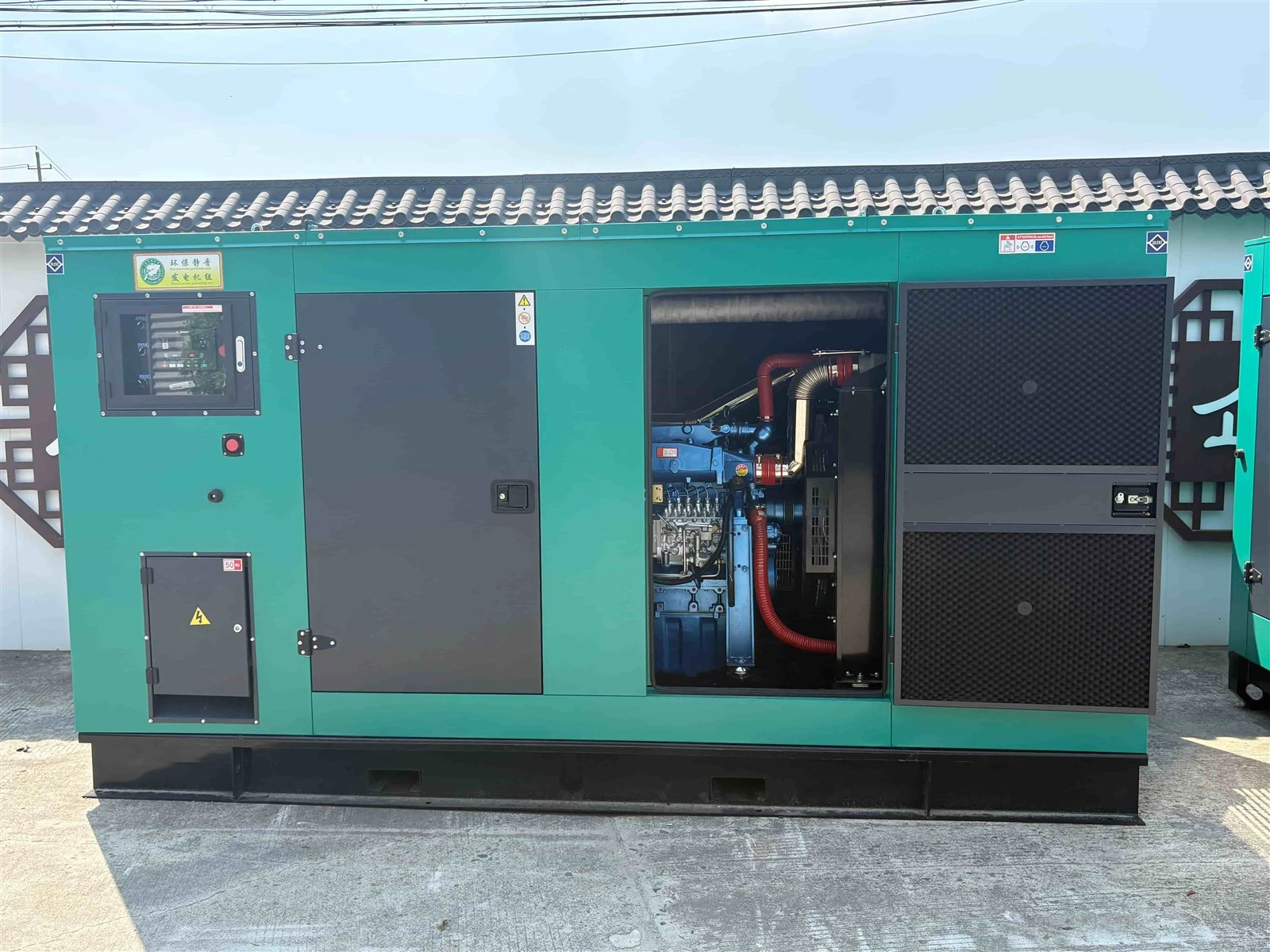

4. Robust Structural Engineering (For Silent/Canopy Type)

Our weather-proof and soundproof silent canopies feature:

2.0mm–2.5mm heavy-gauge steel treated with electrostatic powder coating for superior anti-corrosion.
High-density flame-retardant acoustic foam to minimize noise pollution.
Rigid base frame with built-in 8–12 hours dual-walled fuel tank.

Multi-Scenario Applications

Our 280kW Yuchai generator sets are engineered to perform under extreme ambient temperatures and harsh environments:

Manufacturing Plants & Cold Storage: Prevents catastrophic losses caused by sudden grid power failures.
Mining & Construction Sites: Provides continuous prime power where grid infrastructure is unavailable.
Hospitals & Data Centers: Paired with an ATS (Automatic Transfer Switch) for sub-second emergency power transition.

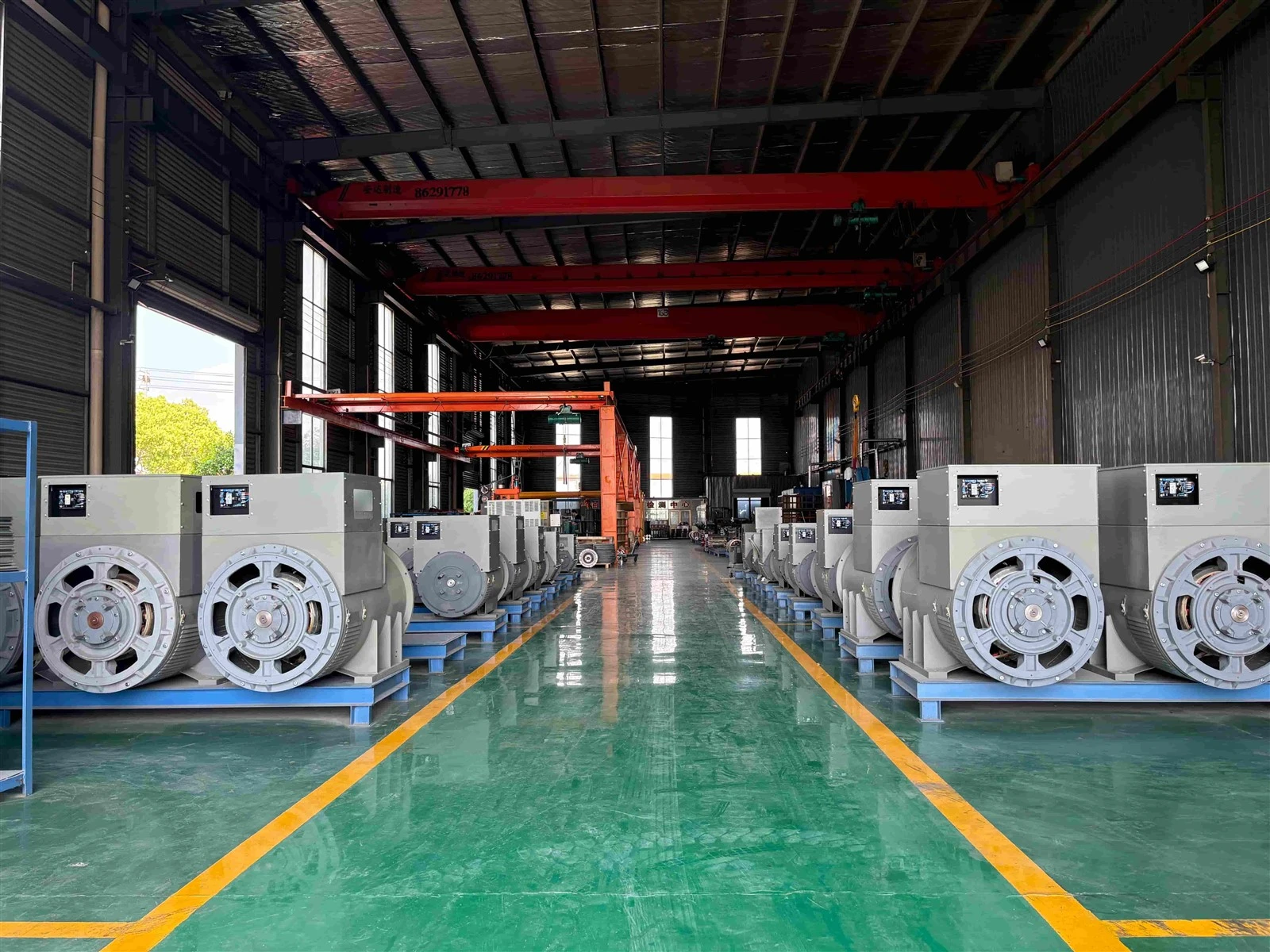

Factory Quality Assurance

At DBD Power, reliability is our bottom line. Every 280kW Yuchai generator set must pass our strict factory testing protocol before shipment:

Strict Inspections: 0%, 25%, 50%, 75%, 100%, and 110% load testing.
Transient Response Test: Verifies governor response and alternator stability under sudden loads.
Safety & Alignment Check: Full alignment diagnostics, insulation resistance checks, and anti-leakage testing for oil/water/gas.
